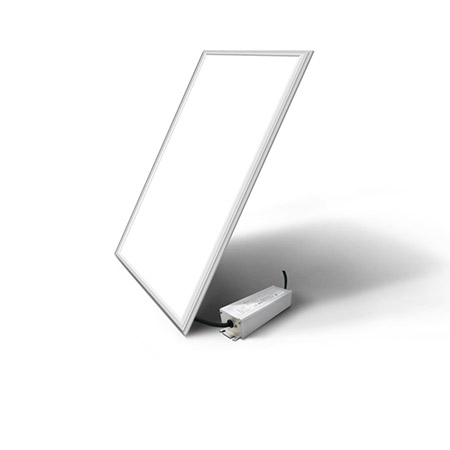

- YSPL66 Series
Description:
Automatic Timingly Dimmable30% More Energy Savings
Diffuser From Taiwan
Side Sourcing Thin Pannel
10mmUltra-thin Design
PB Free
CE 、ROHS、SAA、CB、TUV、GS
LED TYPE：SMD 2835 0.2W
CRI：≥80
Optional CCT：3000K / 4000K / 5000K / 6000K
Light Angle：120°
Insulation：CLASSⅡ
Ingress Protection：IP44
Working environment：10~80%RH，-20℃~50℃

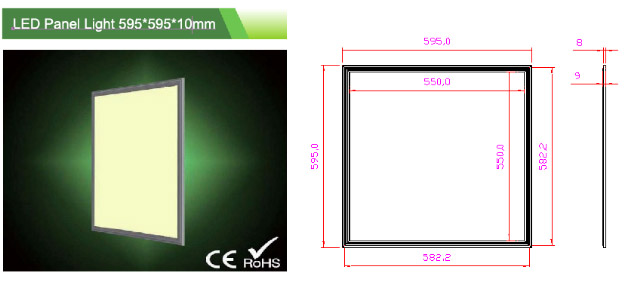

Mounting Dimension：575*575mm
Lifespan>50,000Hrs
|
Model |
Watts. |
LED |
Light Eff |
Lumen |
Power Supply Info. |
|||||
|
|
|
PCS |
lm/W |
lm |
Input |
Output |
PF |
Eff. |
||
|
YSPL6620 |
20W |
204 |
100 |
2000 |
200-240V |
27-42VDC |
0.5A |
>0.9 |
86%
|
|
|
YSPL6630 |
30W |
204 |
100 |
3000 |
200-240V |
27-42VDC |
0.8A |
>0.9 |
86%
|
|
|
YSPL6640 |
40W |
204 |
100 |
4000 |
200-240V |
27-42VDC |
1A |
>0.9 |
86%
|
|
