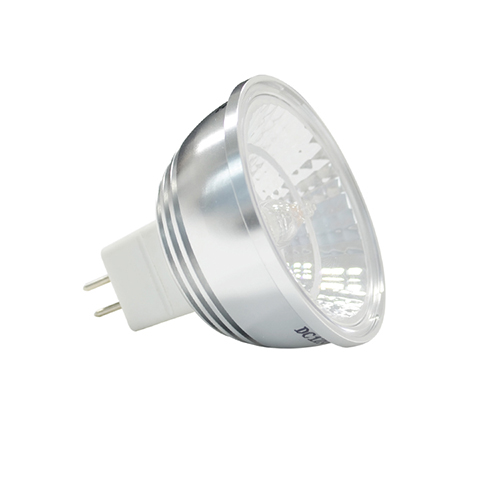

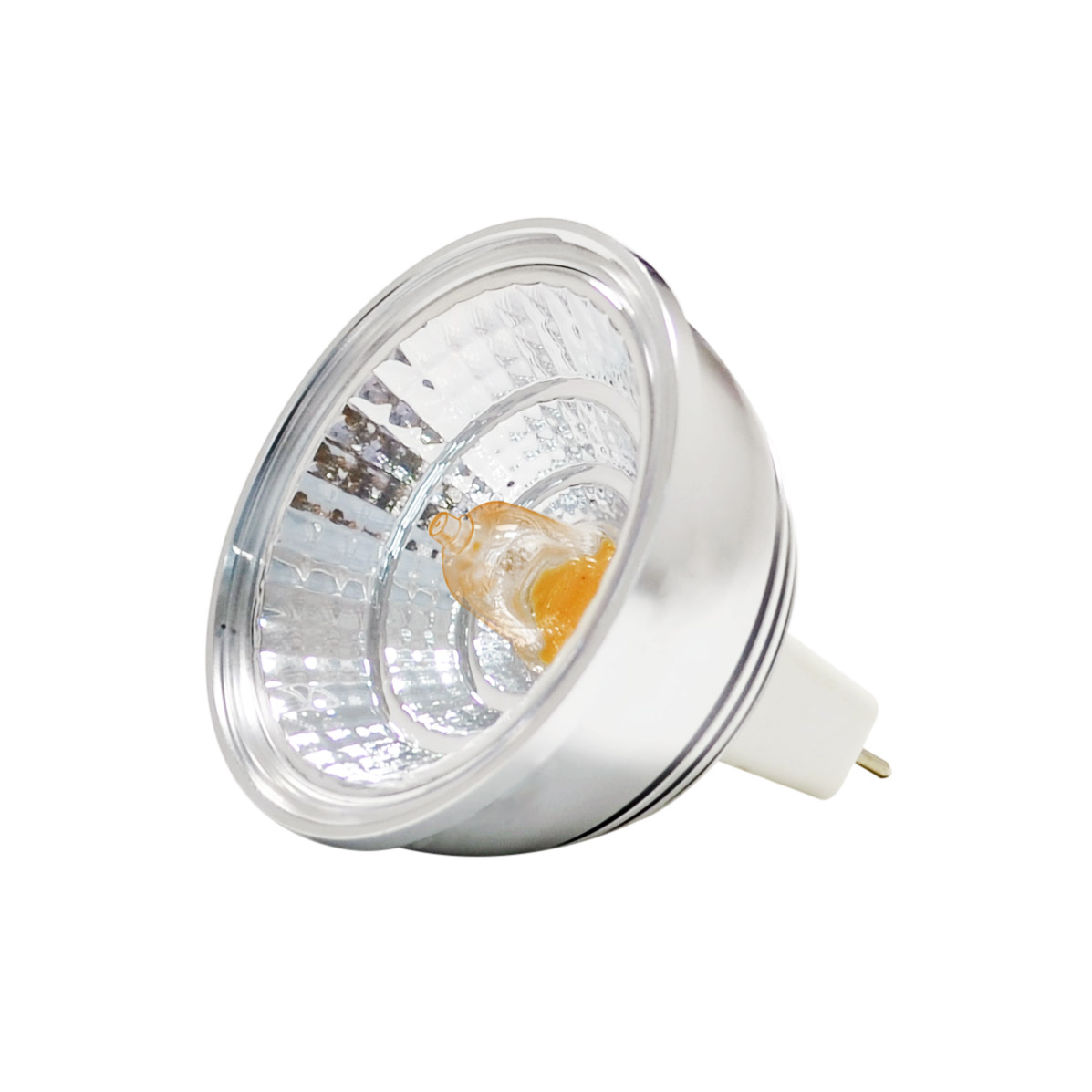

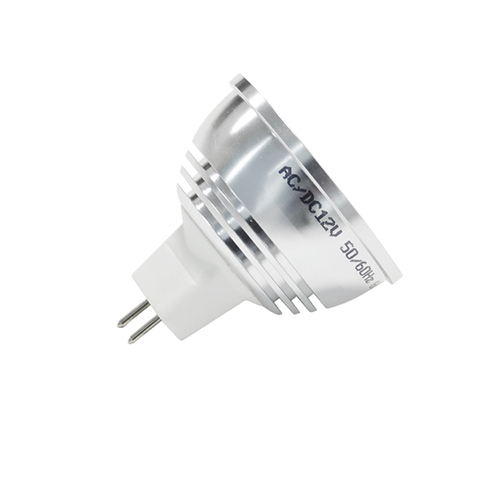

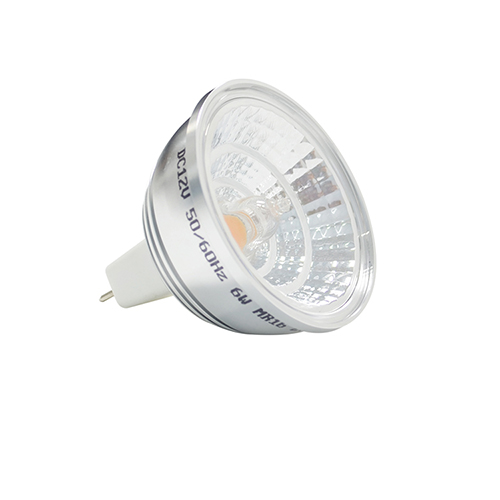

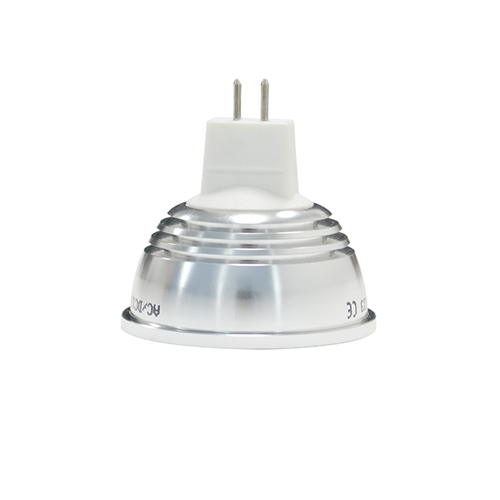

- Truelux LED Spotlight MR16
Description:
Product Name: TrueLux LED Spotlight Retrofit – MR16Application: Commercial Spot Light Retrofit
Wattage: 6W
LED Type: COB LED
Dimming Type: 0-10 & PMW Dimming System
Input Voltage: DC24V / DC36V
Finishing: Pure Alluminum
Design Advantages: Patent Kulad Halogen Shaped Lens
Average Rated Life: 30000 Hrs
Power Factor: 0.75
Warranty: 3 Years
Technical Specs:
Beam Angle Options: 24°/ 36° / 60°
35W – 50W Halogen Equivalent
90% Energy Saving
Dimensions: 50mm(D)*48mm(H)
Dim to Warm Color:
2000-2700K / 2400-3000K
Same as Halogen Lamp
| Product Name | Input Voltage | Socket Base | Size | Dimmable | Wattage | Lumen | Equivalent | TC | Ra>90 | |||||
| Code | Angle | Code | Angle | Code | Angle | |||||||||
| Spotlight MR16 (Non-Dim) |
AC/DC12V | MR16 | 50mm(D)*48mm(H) | No | 5.5W | 380-400Lm | 35W Halogen | 2700K | M03NWHYI | 24° | M03NWHYJ | 36° | M03NWHYL | 60° |
| 420-440Lm | 50W Halogen | 3000K | M03NNHYI | 24° | M03NNHYJ | 36° | M03NNHYL | 60° | ||||||
| 450-480Lm | 50W Halogen | 4500K | M03HDHYI | 24° | M03HDHYJ | 36° | M03HDHYL | 60° | ||||||
| Spotlight MR16 (Dimmable) |
AC/DC12V | MR16 | 50mm(D)*48mm(H) | Yes | 5.5W | 380-400Lm | 35W Halogen | 2700K | M03NWHYI | 24° | M03NWHYJ | 36° | M03NWHYL | 60° |
| 420-440Lm | 50W Halogen | 3000K | M03NNHYI | 24° | M03NNHYJ | 36° | M03NNHYL | 60° | ||||||
| 450-480Lm | 50W Halogen | 4500K | M03HDHYI | 24° | M03HDHYJ | 36° | M03HDHYL | 60° | ||||||
| Spotlight MR16 (Dim To Warm) |
DC24/36V | MR16 | 50mm(D)*48mm(H) | Yes 0-10V Dimmbale |
5.5W | 400-450Lm | 50W Halogen | 2000K-2700K | M03NXHYI | 24° | M03NXHYJ | 36° | M03NXHYL | 60° |
